Horizontal Cavity Trays

Horizontal Cavity Trays

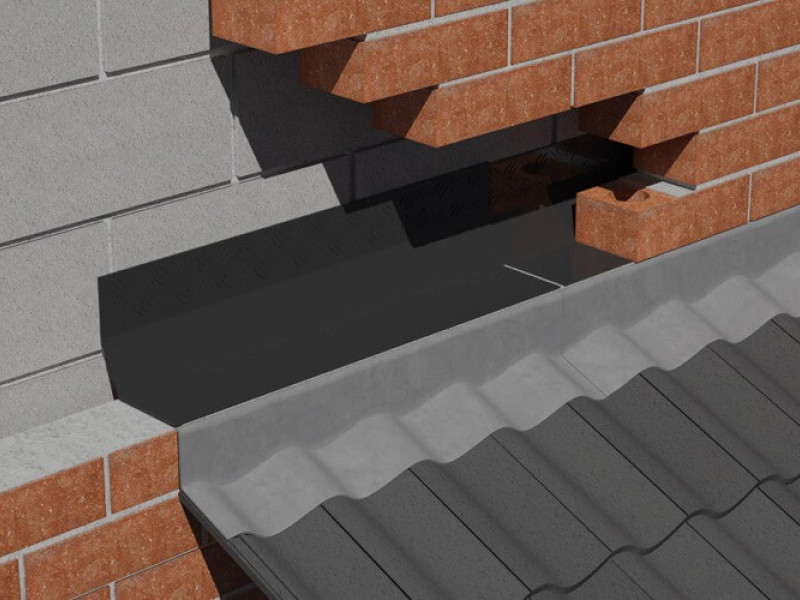

  • Horizontal cavity trays are used at the abutment of a lean-to or mono pitch roof with a cavity wall.
  • Used on external walls  with a maximum thickness of 102.5mm built from standard brickwork, blockwork or stonework with cavities widths of 50mm-125mm.
  • Manufactured with factory fitted lead flashing, cut ready for dressing into position.
  • Available unleaded for site fitting of lead.
  • The 150mm high back upstand exceeds minimum requirements.
  • Horizontal cavity trays are built  into the outer leaf only to speed up installation and allow both inner and outer leafs to be built independently if required.
  • Trays are available in two lengths: 880mm for general use; 460mm to reduce waste when making up a run of cavity tray to the required length.
  • Complies with all relevant Building Regulations and standards.
  • Product consists of horizontal tray with sections joined together by means of a lapped joint, sealed with factory applied butyl mastic tape, to form the main cavity tray run. Handed stopends and internal and external corners complete the system.

Speak to a member of our team on +353 (1) 4019728 who will happily calculate your requirements. Trays are manufactured and delivered to site within 1-2 working days. Alternatively you can send us information through our contact page.
