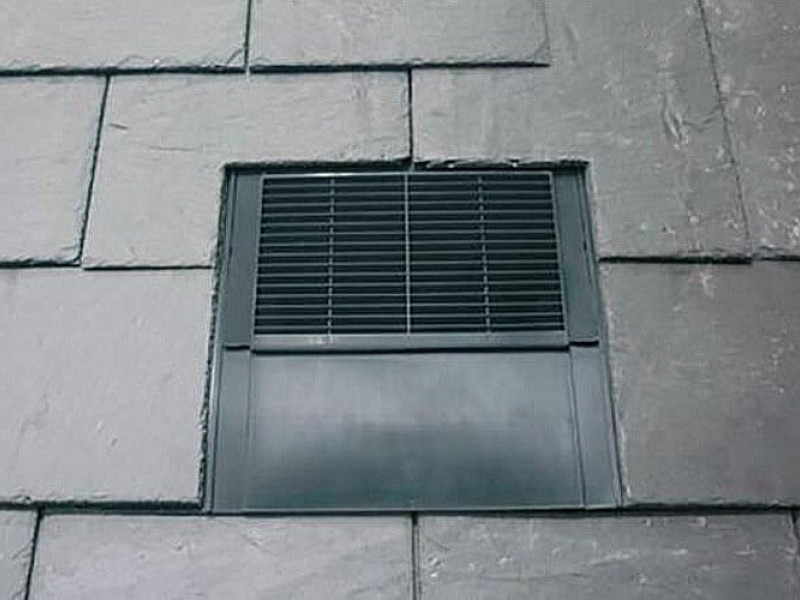

Klober Uniline Slate Vent

Klober Uniline Slate Vent
Click to see full view

Uses

  • Uni-line slate vent is a universal in-line slate vent that suits most man-made and natural slates
  • Suitable for roof pitches between 22.5° and above.
  • For use at high level or low level where the roof construction does not allow eaves or ridge vents.

Features & Benefits

  • In-line design that is fully wind tunnel tested
  • Build in downpipe allows direct ventilation to roof space. No soil/mechanical adaptor required
  • Suitable for 600x300 & 500x250mm fibre and natural slates
  • Easy to install with compact design minimising the amount of slate cutting required.
  • Can be installed as required during slating process
  • Complies with current Building Regulations; BS5250 & BS5534, ICP2
  • Batten cutting only required below 225mm gauge when used with 500x250mm double lap slate

Installation

  1. At least one full depth course of slate is required either above or below the vent and must be located between rafters
  2. Mark out the area for the vent on the two slates directly below the vent. Remove and cut the slates as required
  3. Mark the underlay diagonally, cut and pin back to surrounding battens and rafters. If required an additional underlay seal is available.
  4. Fix the cut slates into position directly below the vent leaving the underlay opening exposed.
  5. Slide the vent spigot into the opening . Using the centre line on the vent, align with the joint line of the two slates directly below. Fix vent by nailing through centre nail holes.
  6. Fix slates either side of the vent, ensuring that they overlap the side flashing by the correct distance. Continue to fix subsequent slate courses as normal.

Specifications

Free Area 12,000mm² ventilation area (6500mm² effective ventilation area)
Size Universal
Material UV resistant Polypropylene
Colour Dark Slate - 963007 Slate Grey - 963060
Suggested spacing 5000mm²/m = 1.2m, 10 000mm²/m = 0.6m
Airflow resistance when used as SVP 15lt/sec 24Pa, 30lt/sec 96Pa, 60lt/sec 384Pa
