Brick Vents & Cavity Sleeves

Brick Vents

  • To provide ventilation through external walls to the building interior.
  • Equivalent area of 6170mm2 per 9×3 air brick.
  • 215mm long x 69mm high x 60mm wide.
  • Dovetail connection allows multiple airbrick to be stacked to form 9×6 or 9×9 sizes.
  • Front grille designed to reduce the entry of wind driven rain.
  • Available in six different colours with 20 airbricks per box.
  • Should be used in conjunction with ICON cavity sleeves.

DOWNLOAD DATA SHEET

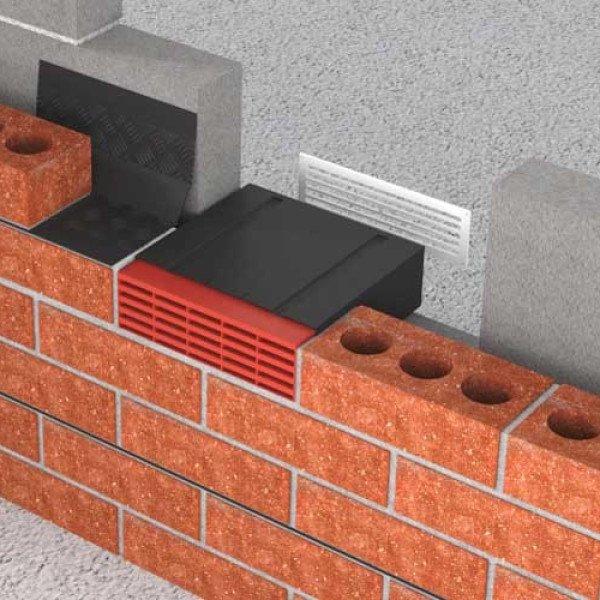

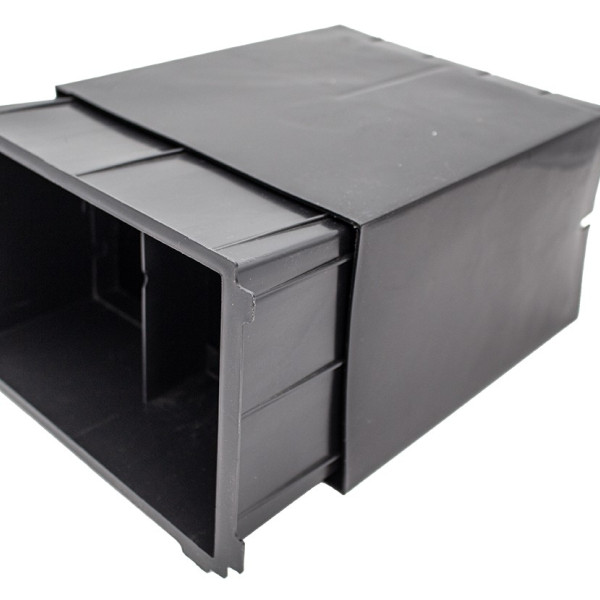

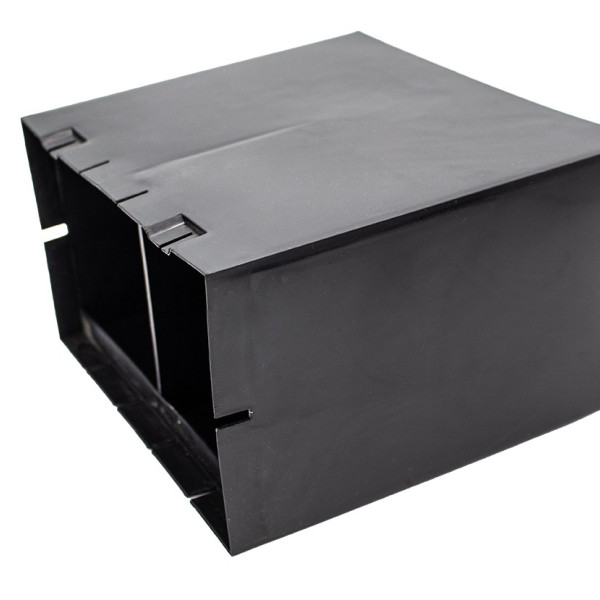

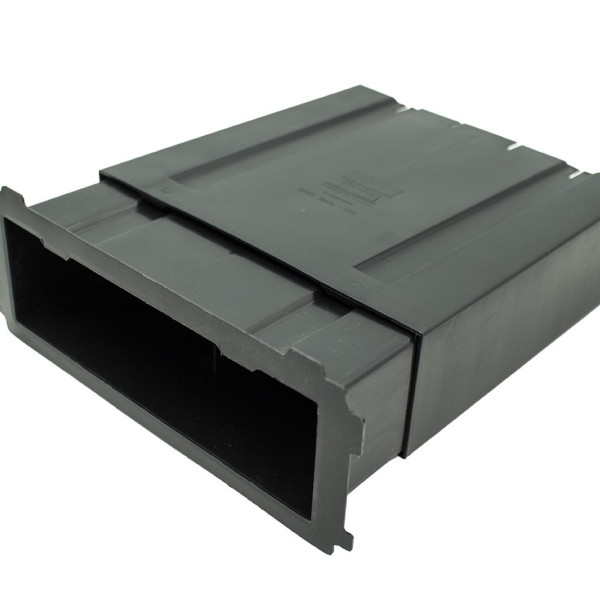

Cavity Sleeves

  • Used in conjunction with ICON airbricks and grilles.
  • Available to suit 9×3, 9×6 or 9×9 wall vents.
  • Provided unrestricted ventilation through the cavity of external wall to the building interior.
  • Telescopic to suit a variety of different cavity widths.
  • Durable and totally resistant to decay.

DOWNLOAD DATA SHEET

ACCESSORIES

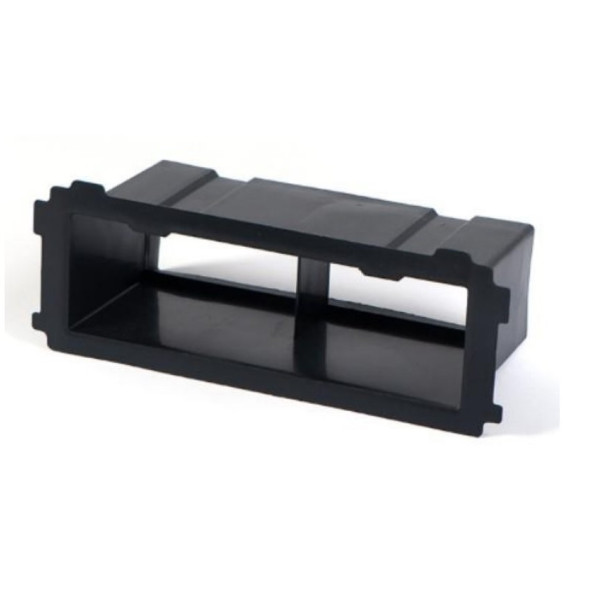

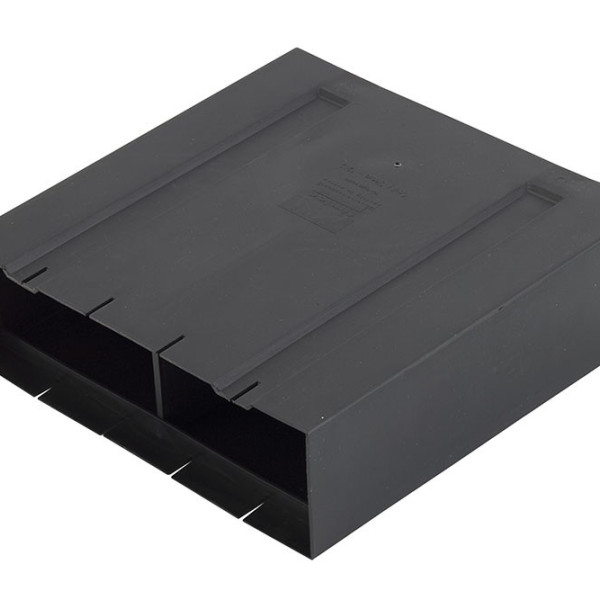

ICS37
ICS37

Fitted to the internal side of ICS93 & provides maximum extension of 365mm.

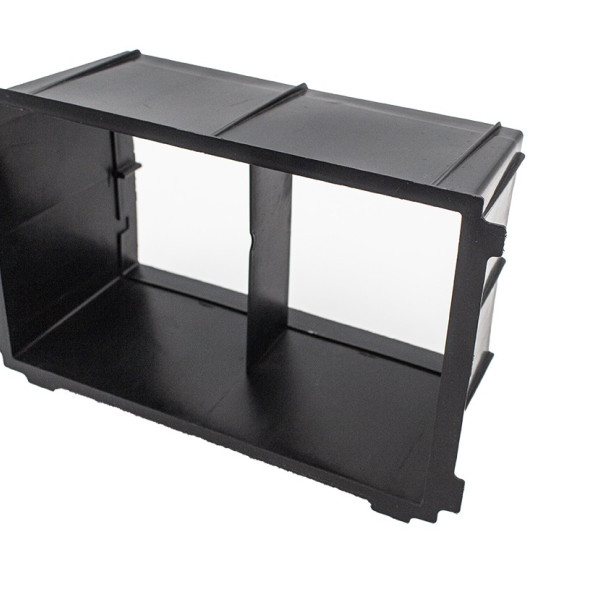

ICS36
ICS36

Fitted to the internal side of ICS96 & provides maximum extension of 365mm.
